Decoding the IC 74373
1. What Exactly Is This Little Chip?

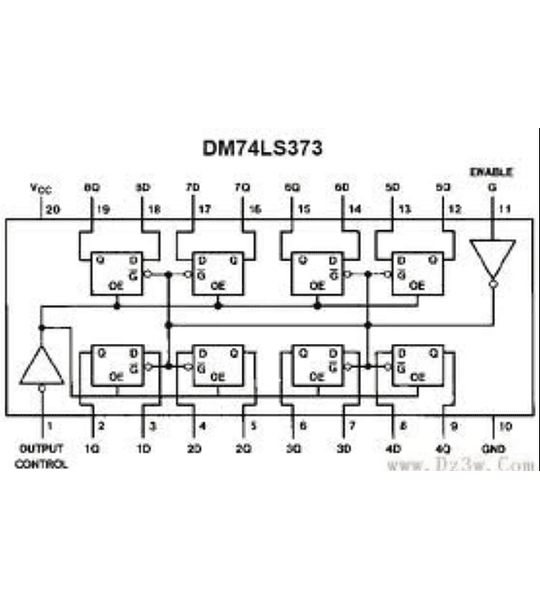

Ever wondered how computers juggle so much information without dropping any balls? Well, part of the secret lies with trusty components like the IC 74373. Now, "IC 74373" sounds like something straight out of a sci-fi movie, but it's actually a very common and useful integrated circuit. Specifically, it's an octal transparent latch with tri-state outputs. Okay, let's break that down before your head explodes!
Think of it as a highly organized postal worker for digital data. It has eight separate "mailboxes" (that's the octal part, meaning eight). Each mailbox can hold one bit of data. This data comes in, gets temporarily stored, and then, when the time is right, gets sent on its way. It's a simple concept, but incredibly powerful for managing data flow.
That "transparent latch" part means that when enabled, the data flows straight through the IC 74373, like looking through a window. Its transparent! However, when the latch is disabled, it holds onto the last piece of data it received, keeping it safe until it's needed. Its like putting a hold on your mail delivery when youre on vacation, except for bits and bytes.
And finally, those "tri-state outputs" are like having a switch that can be on, off, or well, floating. This allows multiple devices to share the same data line. Only one device "talks" (is in the 'on' state) at a time, preventing digital shouting matches and ensuring clear communication. If you think of data as traffic then, the 74373 is essentially a set of traffic lights.
