Diving Deeper
2. The Essential Building Block

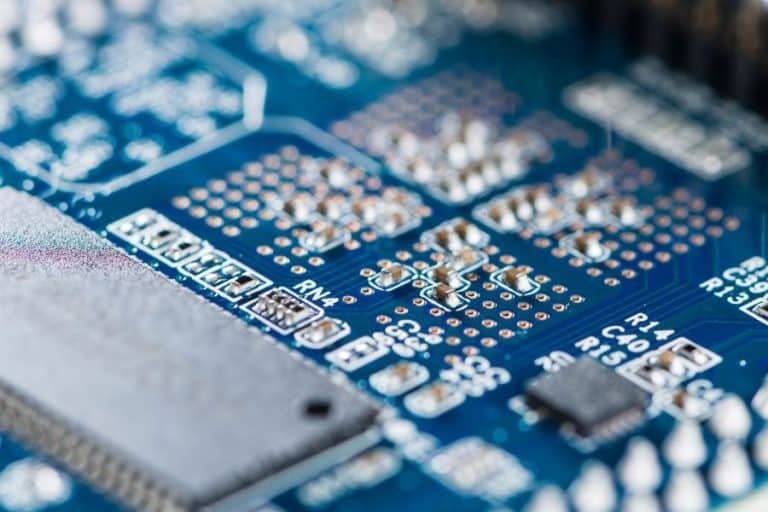

PCBs are the unsung heroes of the electronic world. They provide both physical support and electrical connections for all the components you see resistors, capacitors, integrated circuits (chips), connectors, and more. Without a PCB, you'd just have a pile of components with wires dangling everywhere — a recipe for a short circuit and a whole lot of frustration.
The magic of a PCB lies in its design. The conductive pathways, usually made of copper, are etched onto the boards surface (or within multiple layers of the board). These pathways act like tiny wires, allowing electricity to flow between the different components in a precisely controlled manner. It's like a super-organized, miniature highway system for electrons!
Different types of PCBs exist, from simple single-layer boards to complex multi-layer boards used in high-end electronics. The more layers, the more complex the circuitry can be, and the more components can be packed into a smaller space. Think of it as adding more floors to a building to accommodate more tenants.
The manufacturing process of PCBs is quite intricate. It involves layering materials, etching circuits, drilling holes, and applying solder masks (that green coating you see) to protect the copper traces. Precision and accuracy are key, as even a tiny flaw can render the entire board useless. It's a process that requires specialized equipment and a lot of know-how.
